Modular 3D printed desk Organization Kit ( Magnetic )

This is a modular, 3D printed desk organization with magnet based assembly, functional storage components, and flexible layouts for customizable workspace, optimized for me but can be easily modified as per need

Final listings

Now everything is completed, so below is the listing of each item along with its weight and specifications.

I would be using BambuLab P2S, so the plate size is a lot bigger than my A1 mini. It belongs to my friend, so he would let me use it. That’s why for the slicing I have used that only instead of A1, so objects are bigger than you might think.

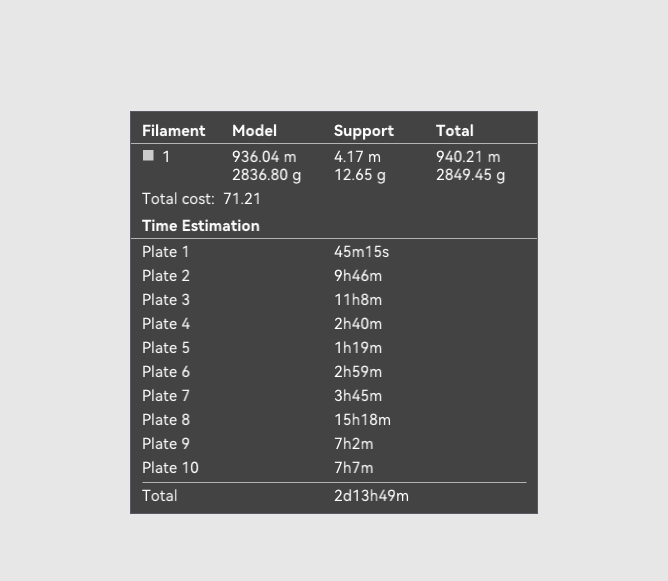

image image

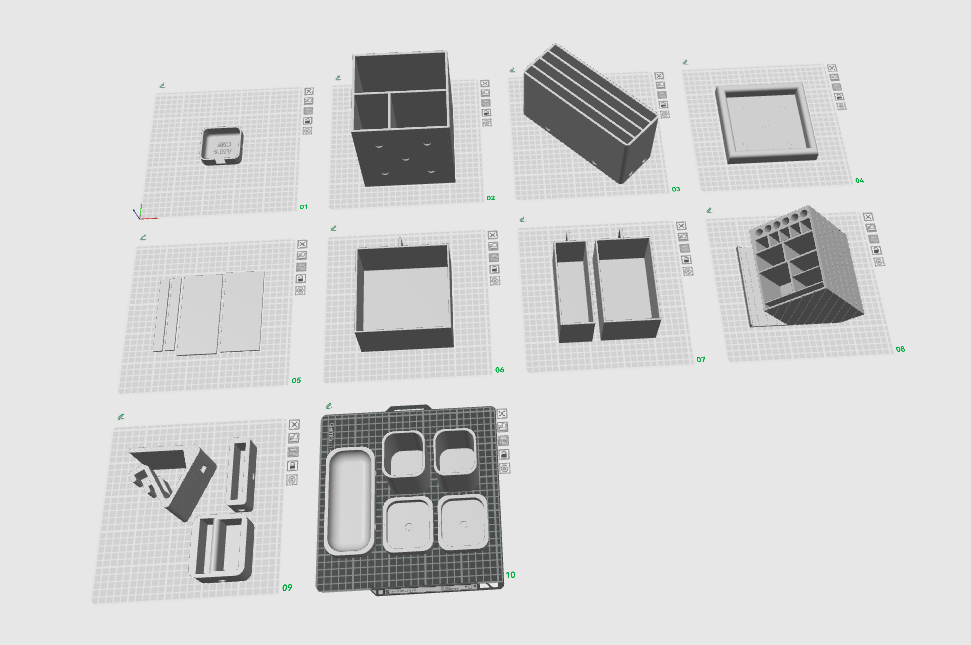

Plate wise Breakdown

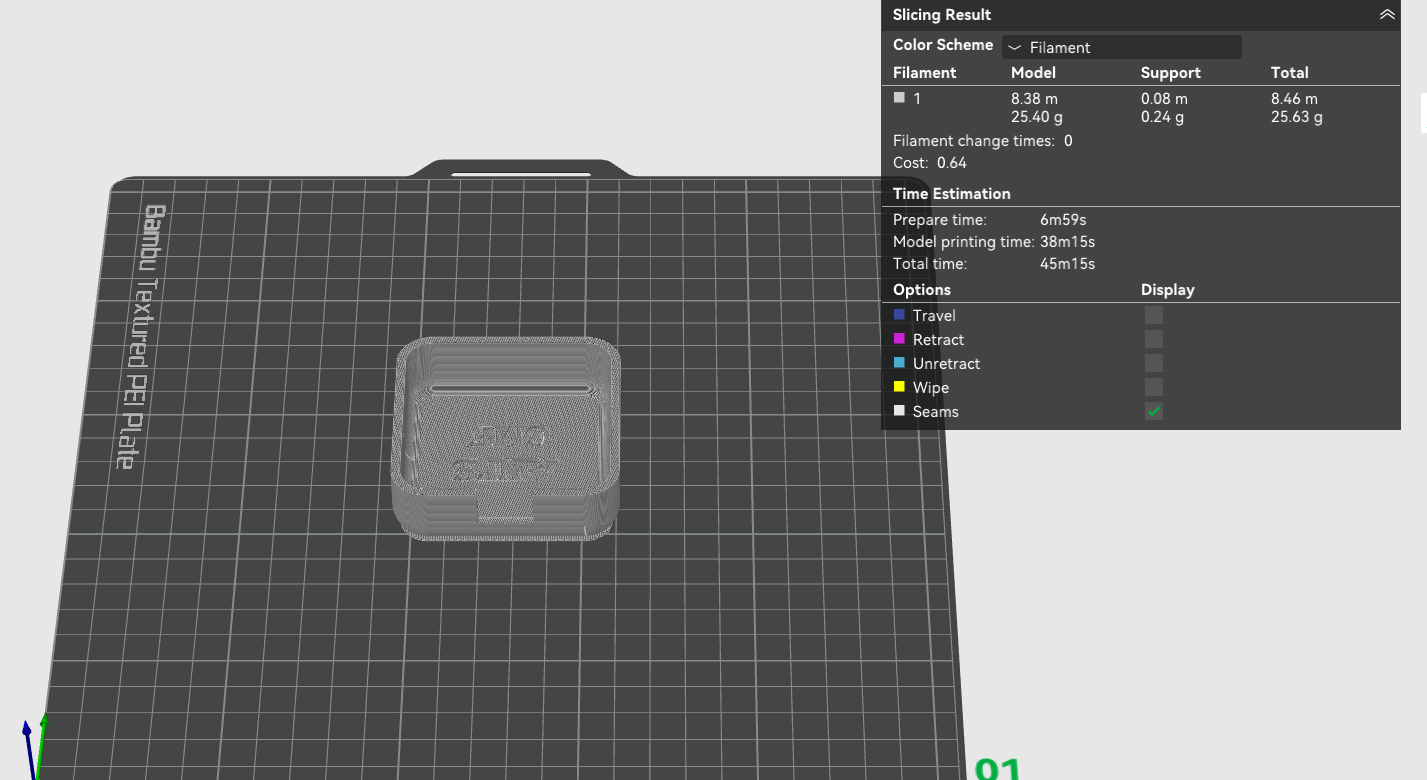

Plate 1


  • Item: CMF Birds stand
  • Magnets used:
    • Three 5 mm × 1.5 mm magnets
  • Weight: 25.4 grams

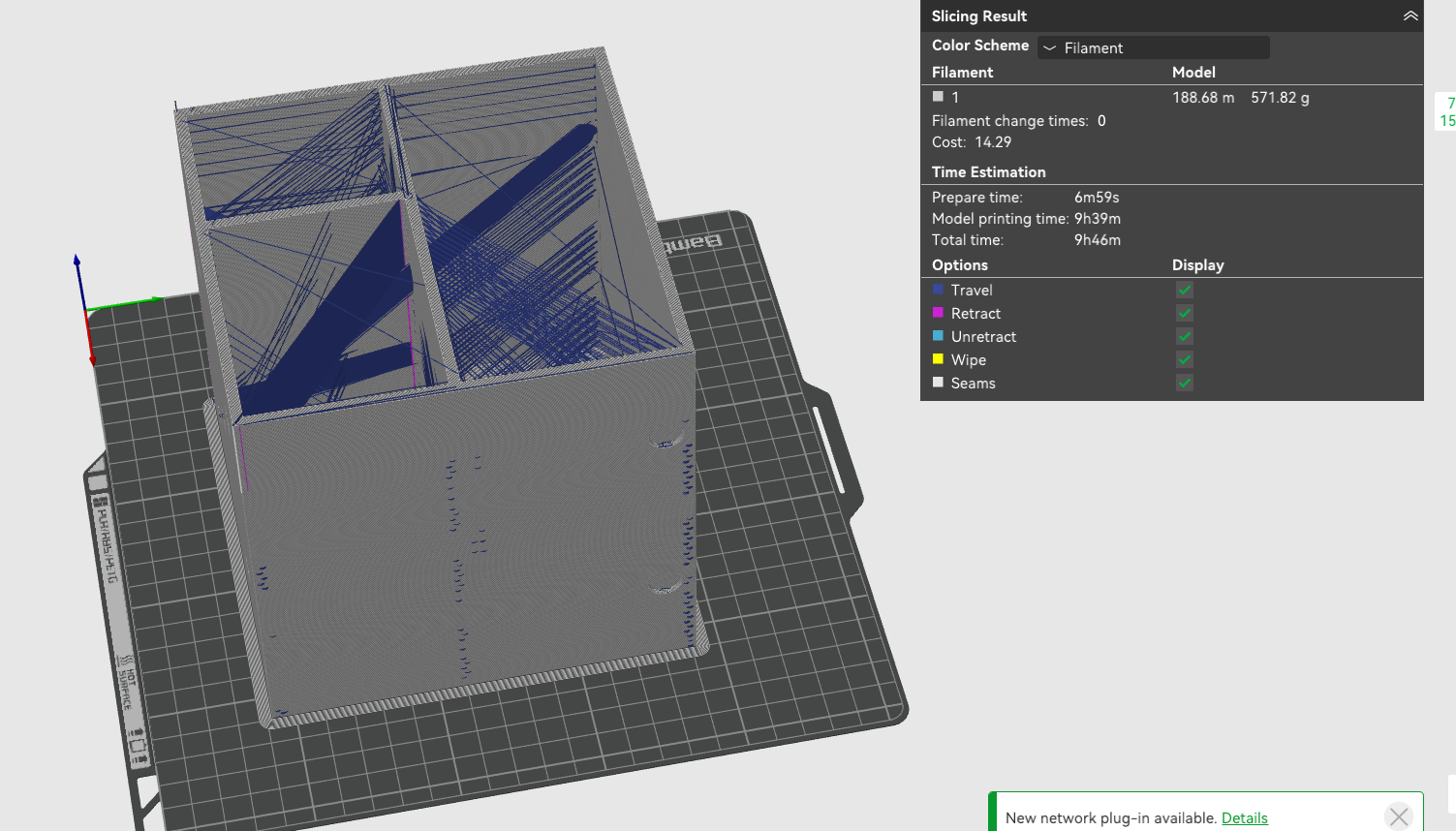

Plate 2


  • Item: Cabinet
  • Magnets used:
    • Four 10 × 2 mm magnets
    • Upper part: 5 × 10 mm magnets, thickness 1.5 mm
  • Weight: 571 grams

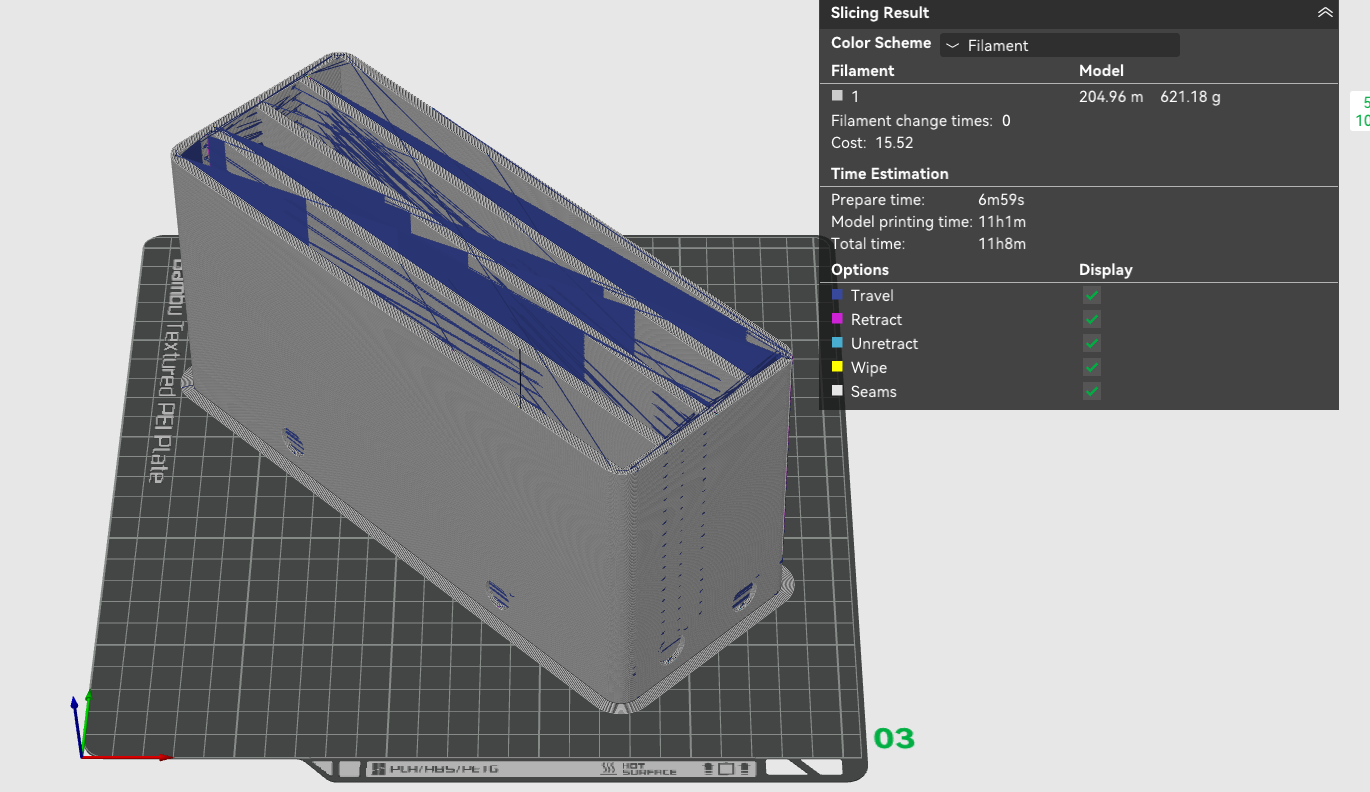

Plate 3


  • Item: Bookshelf
  • Magnets used:
    • Four 10 × 2 mm magnets
  • Weight: 621 grams

All the designs from here onward use 10 × 2 mm magnets only

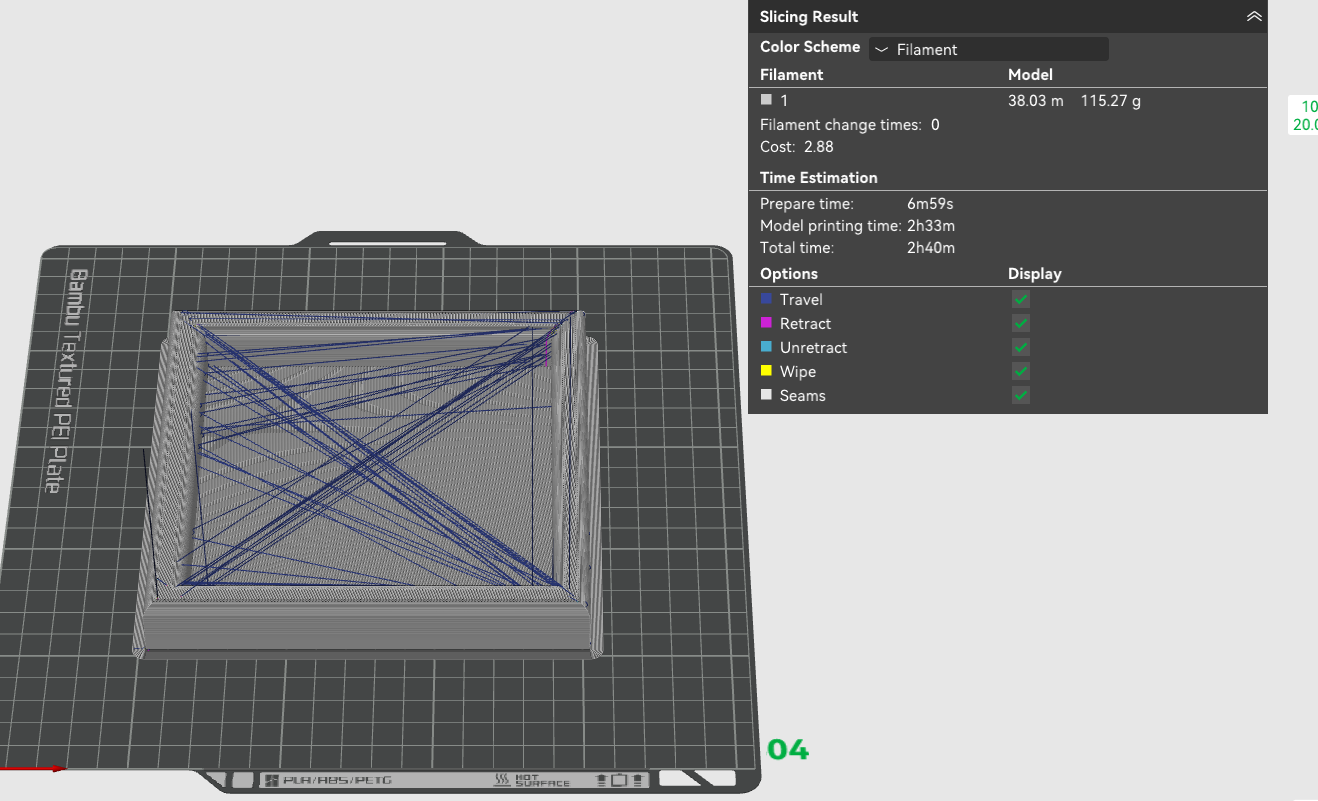

Plate 4


  • Item: Top panel for the container
  • Magnets used:
    • Five 10 × 2 mm magnets
  • Weight: 115 grams

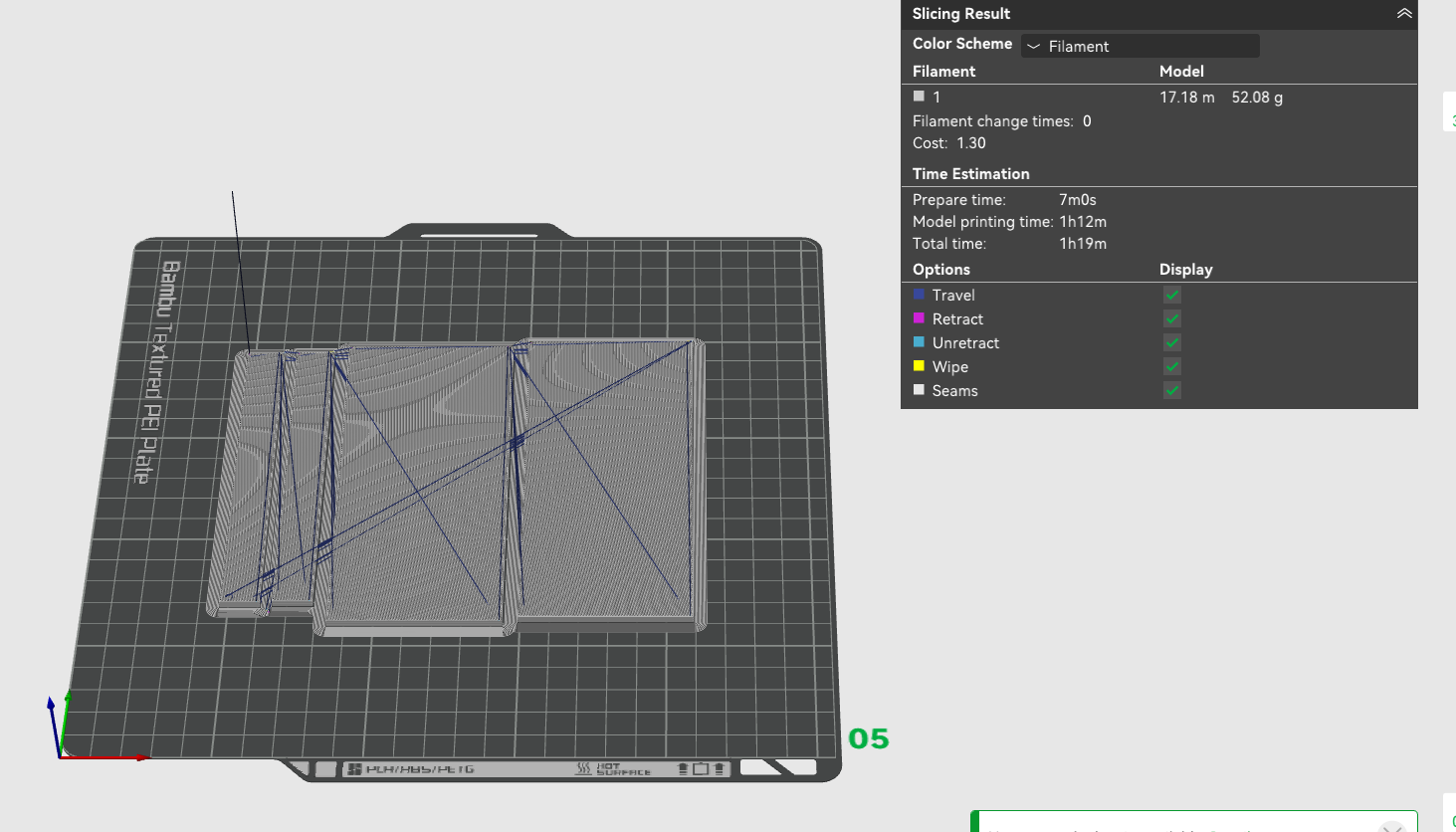

Plate 5


  • Item: Slits used in the container
  • Magnets required: None
  • Weight: 52 grams

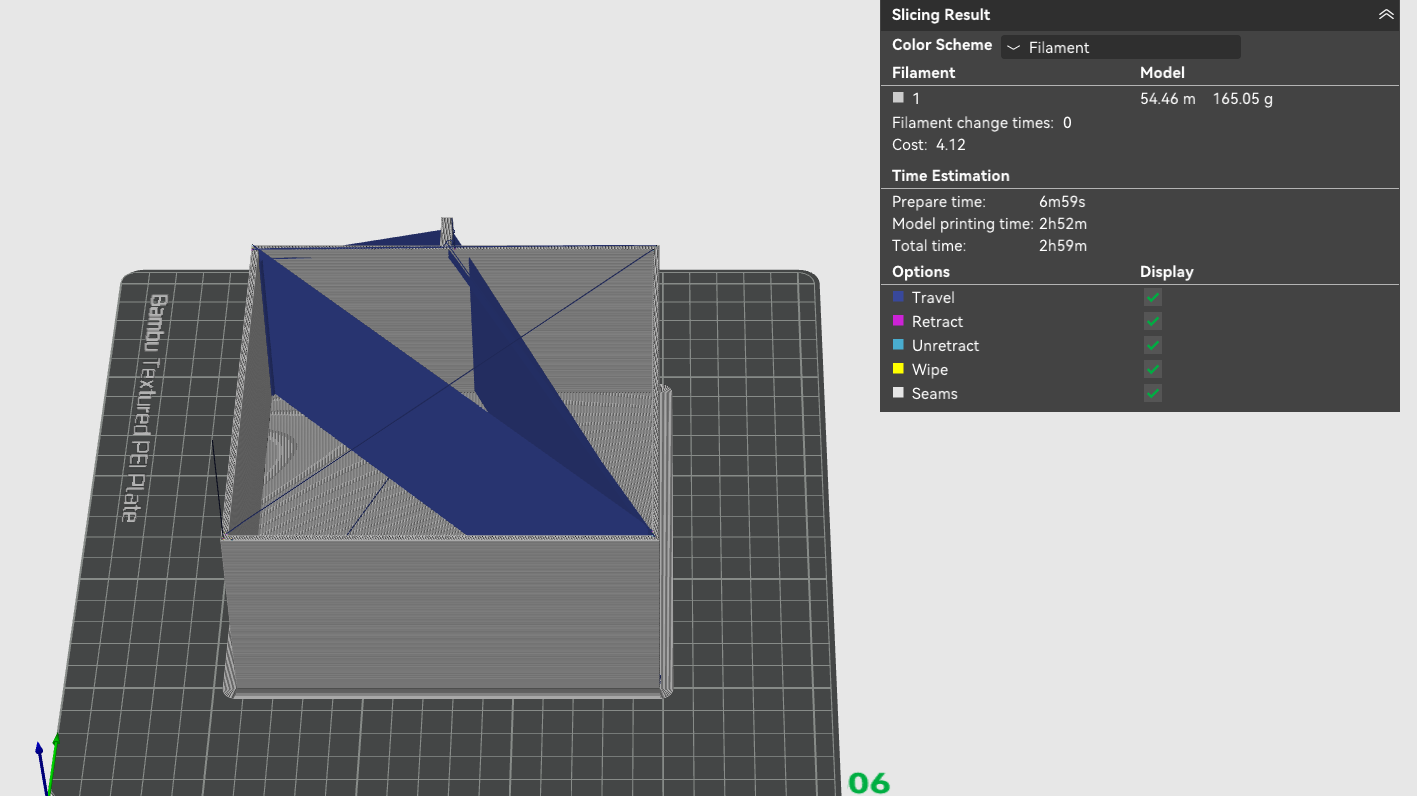

Plate 6


  • Item: Cabinet
  • Magnets required: None
  • Weight: 165 grams

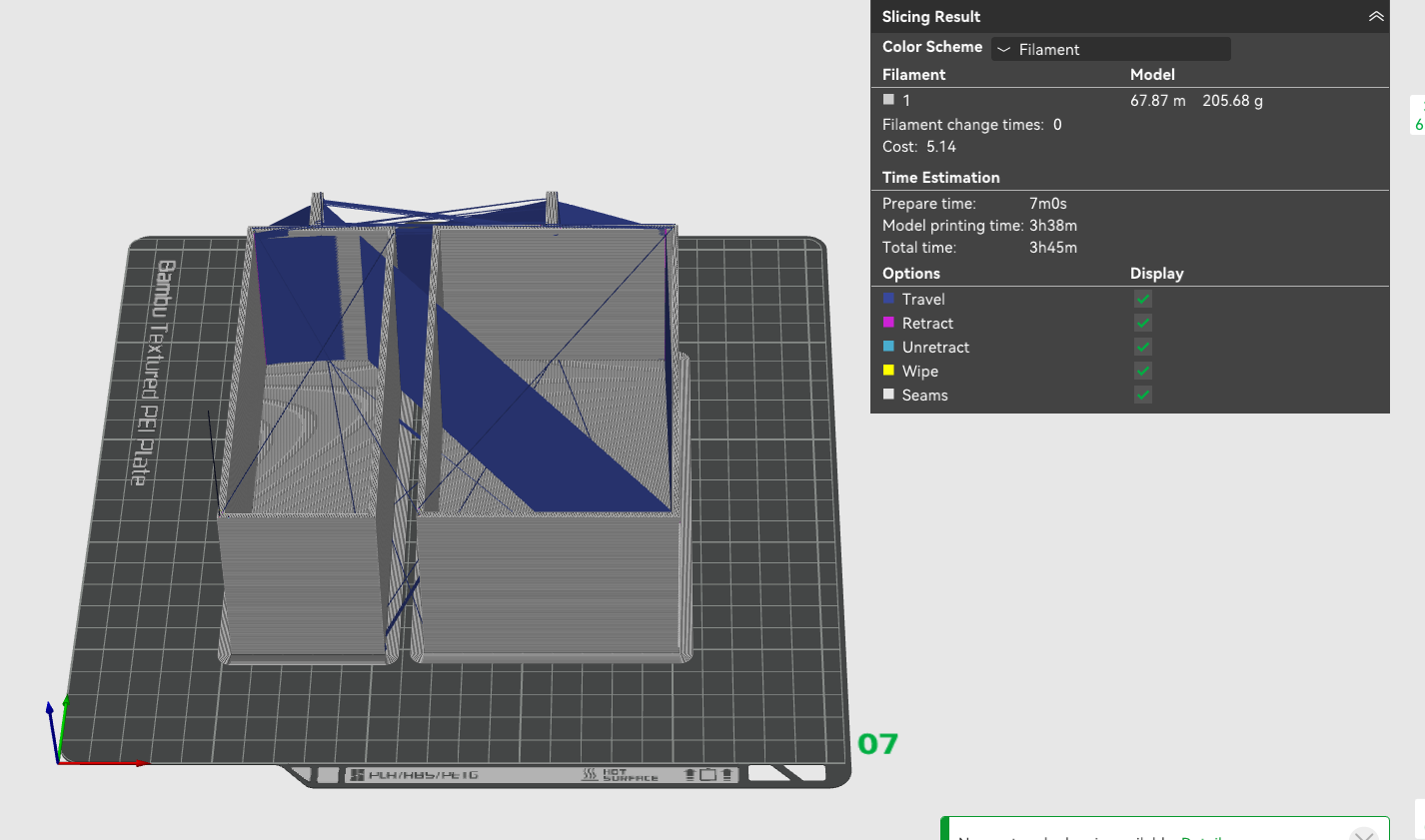

Plate 7


  • Item: Two smaller cabinets
  • Magnets required: None
  • Total weight: 205 grams

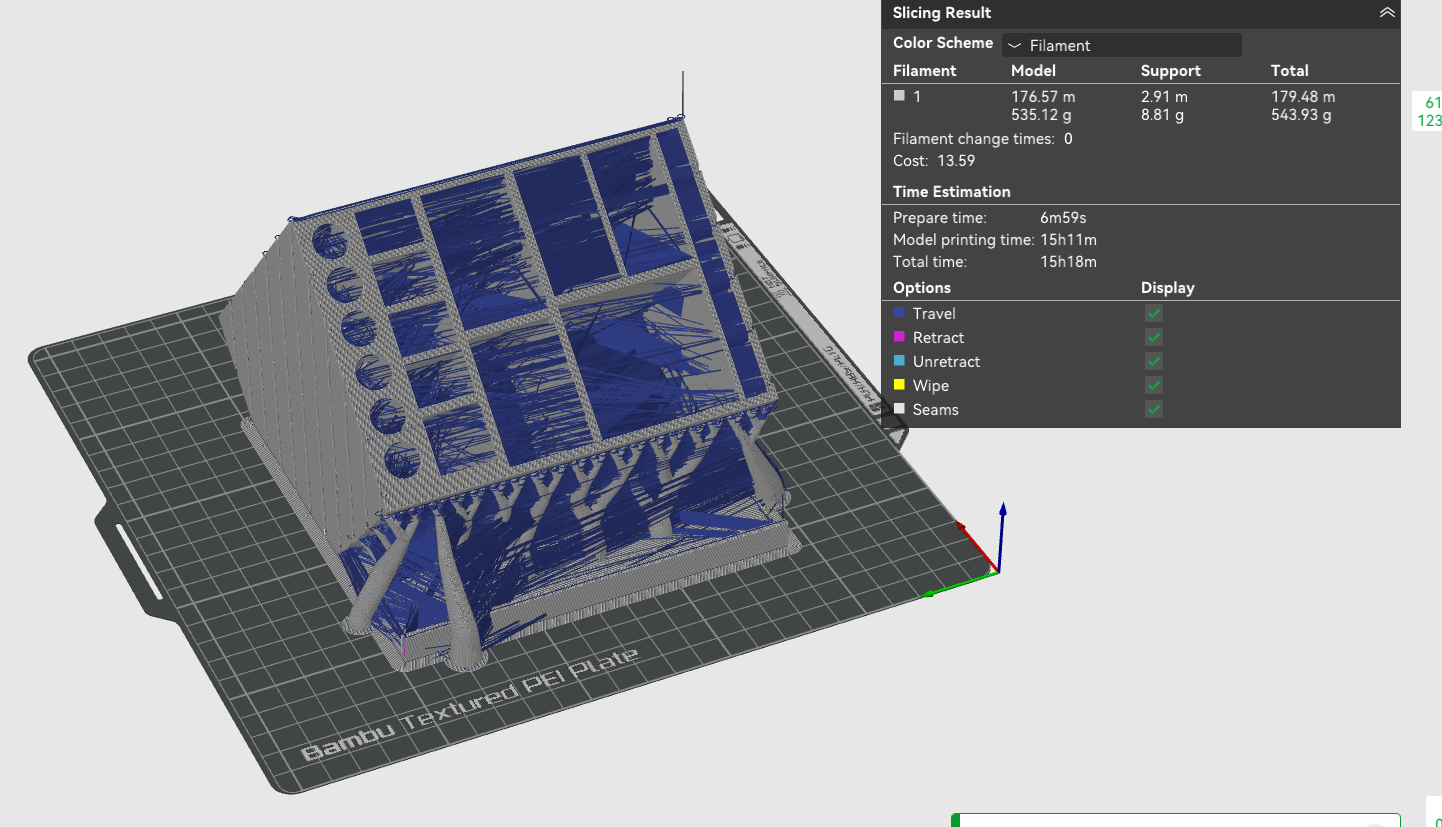

Plate 8


  • Item: Pen stand
  • Magnets required: None
  • Additional notes: Requires some additional supports
  • Weight: 543 grams

Magnets could be added if needed, but they were not added here.

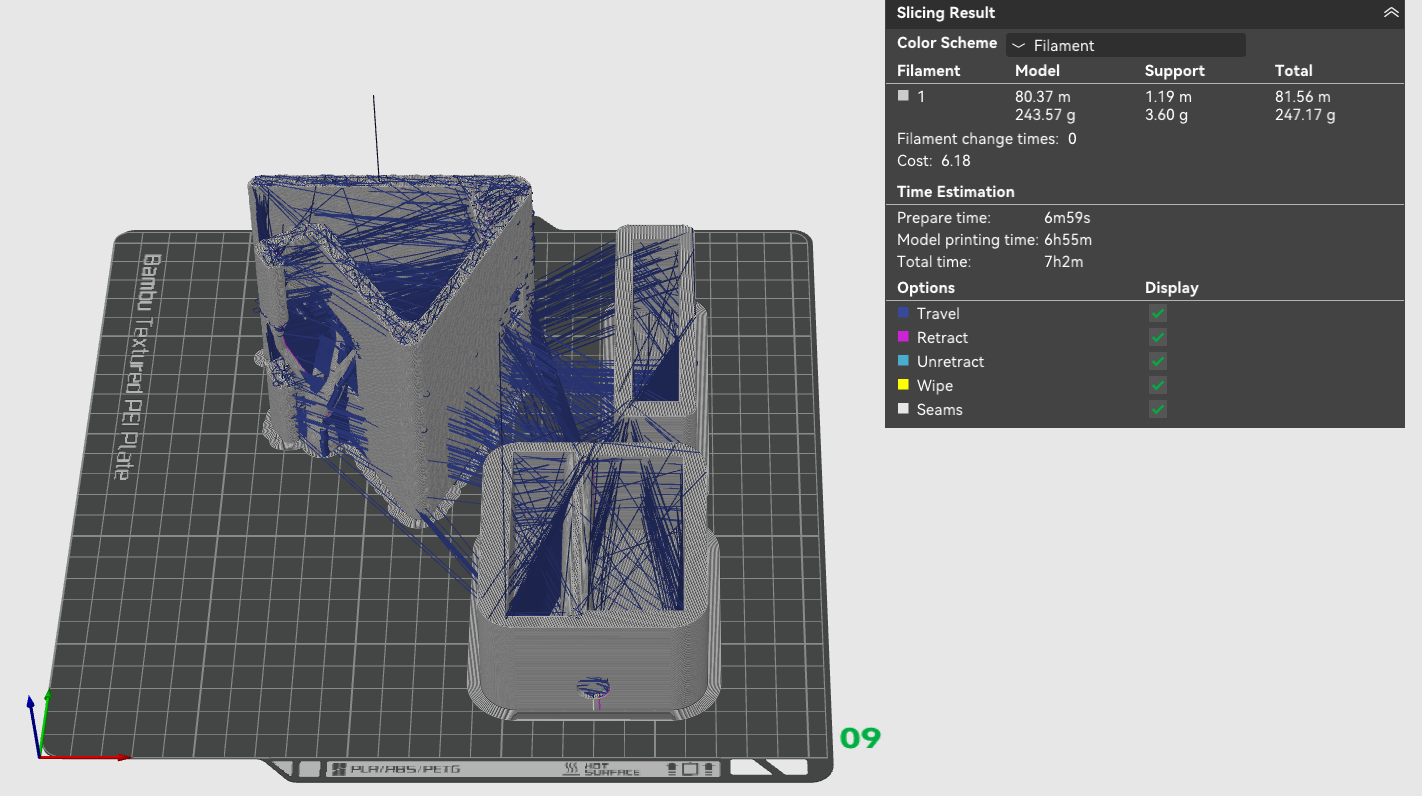

Plate 9


  • Items:
    • Phone stand
    • Power bank dock
    • SSD holder
  • Magnets used:
    • Six 10 × 2 mm magnets
  • Additional notes: Requires supports for the phone stand
  • Weight: 247 grams

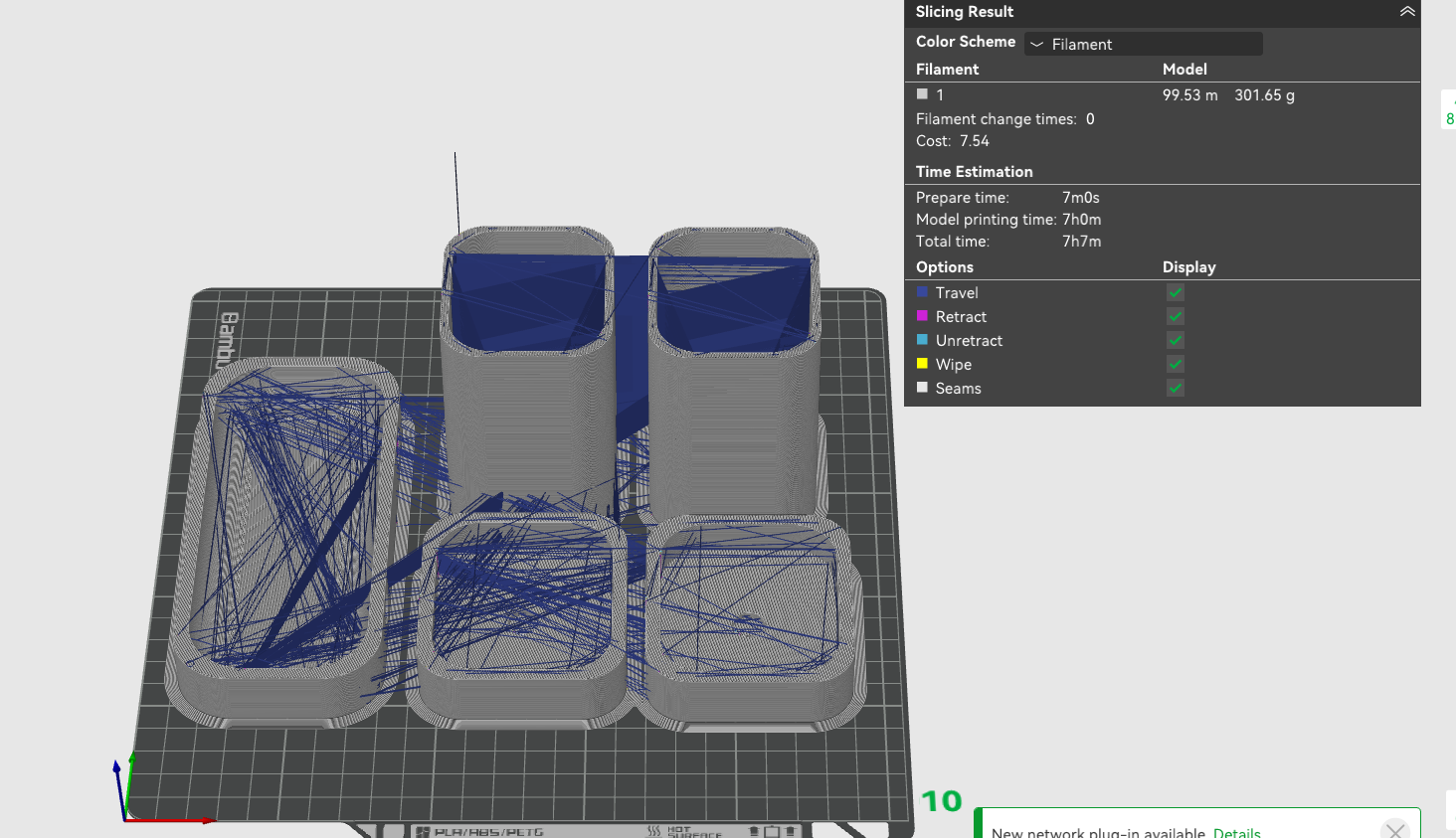

Plate 10


  • Item: Organizer desk plates
  • Magnets used:
    • Eight 10 × 2 mm magnets
  • Weight: 302 grams

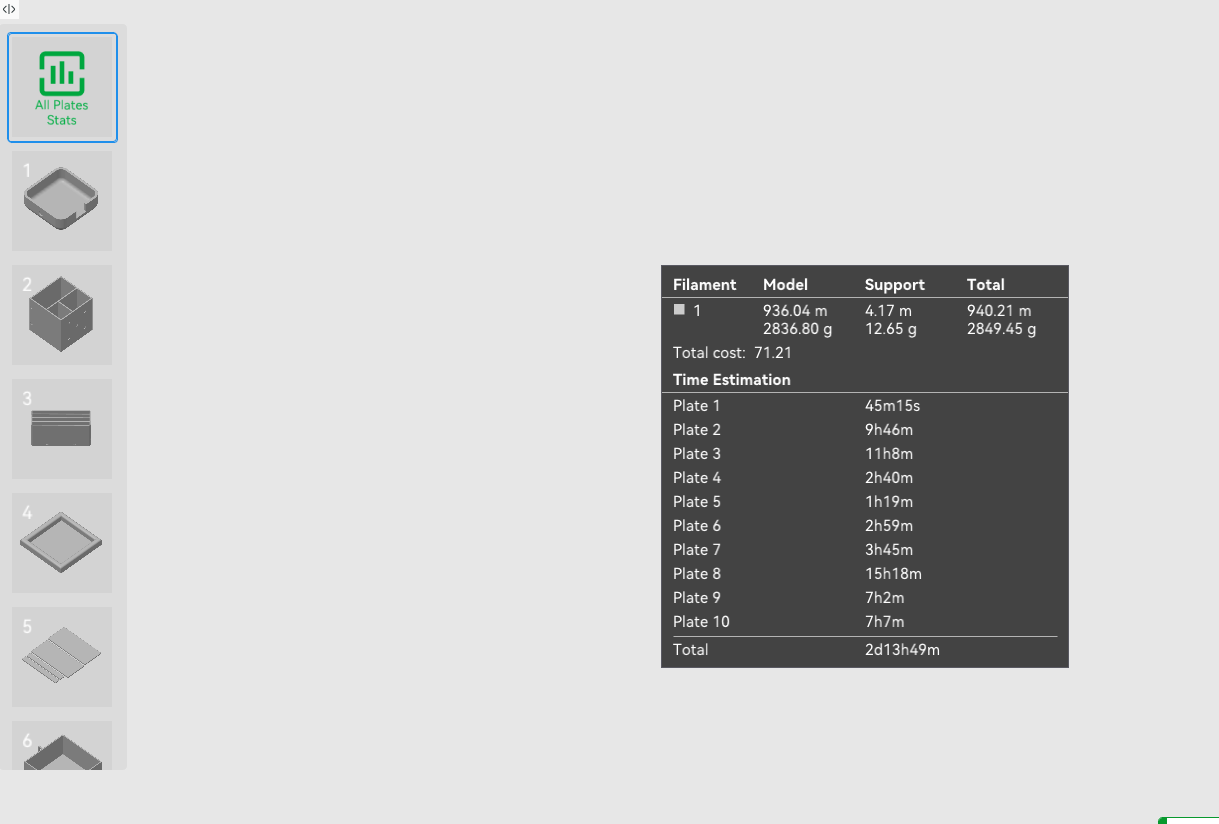

Final Summary


Total Weight

  • Overall total weight: 2846.4 grams ( roughly more then 3kg due to mandatory failed print {:prayge:}
